New Design! Smart GaN Power Modules with Integrated Gate Drive. Sensitron has designed a family of Gallium Nitride (GaN) Power Bridge Modules with an integrated gate drive, ideal for power system applications requiring low voltage (100V to 350V), in an extremely small package. Featuring fast switching and low Rdson, these highly efficient wide band gap modules are available in two package options or custom bridge configuration with optimal top side cooling to the package lid.
|
|

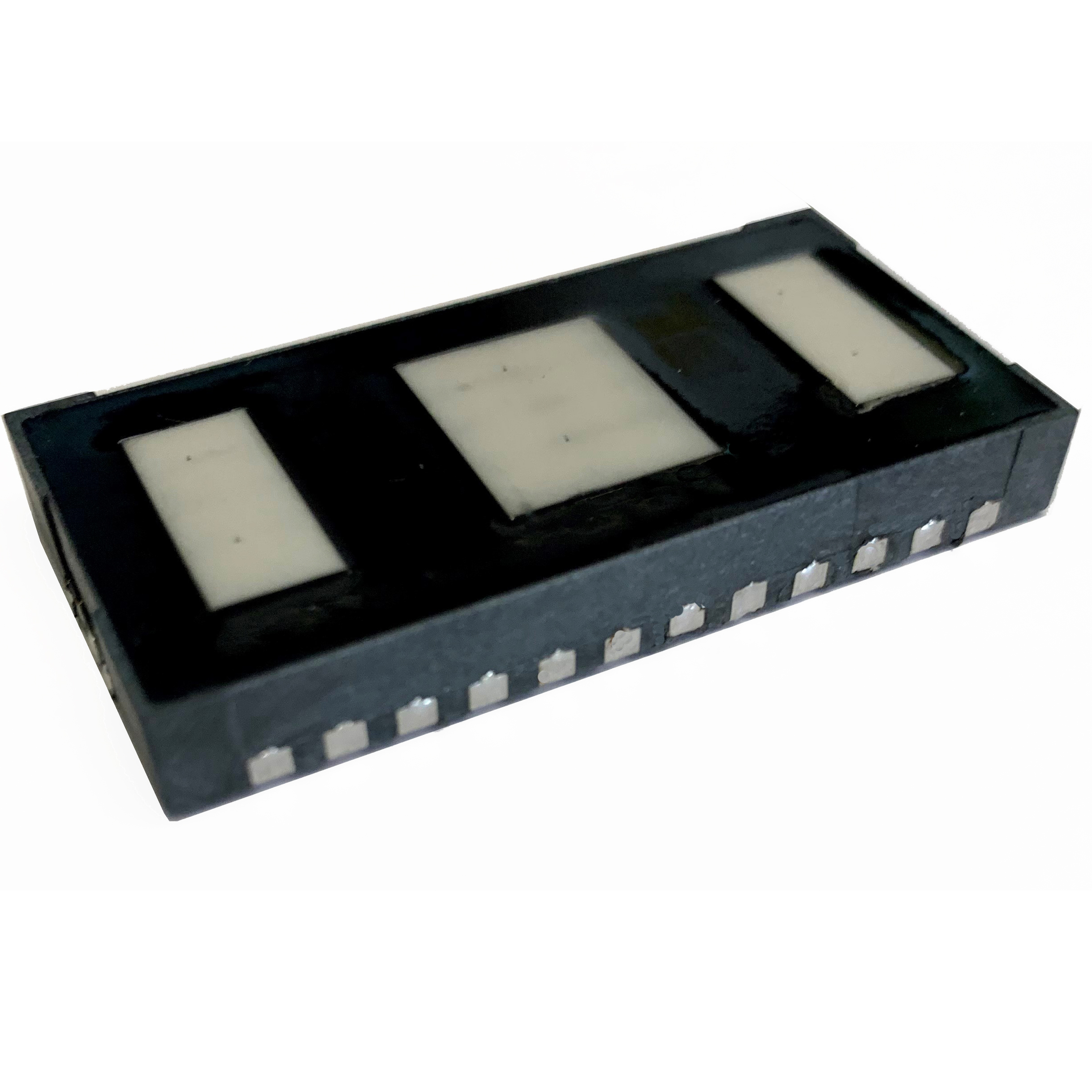

GaN Full Bridge IPM, 250V rated 25A
Rated at 200V, 25A, this highly efficient GaN full bridge with integrated gate drive features high switching speeds to 1Mhz, ideal for hi-reliability applications requiring high frequency designs. This GaN module uses proprietary topside conduction cooling to PCB with thermal interface through solder castellations for optimal performance, in an ultra small package (2" x 1" x 0.25").
LEARN MORE
|
|
|

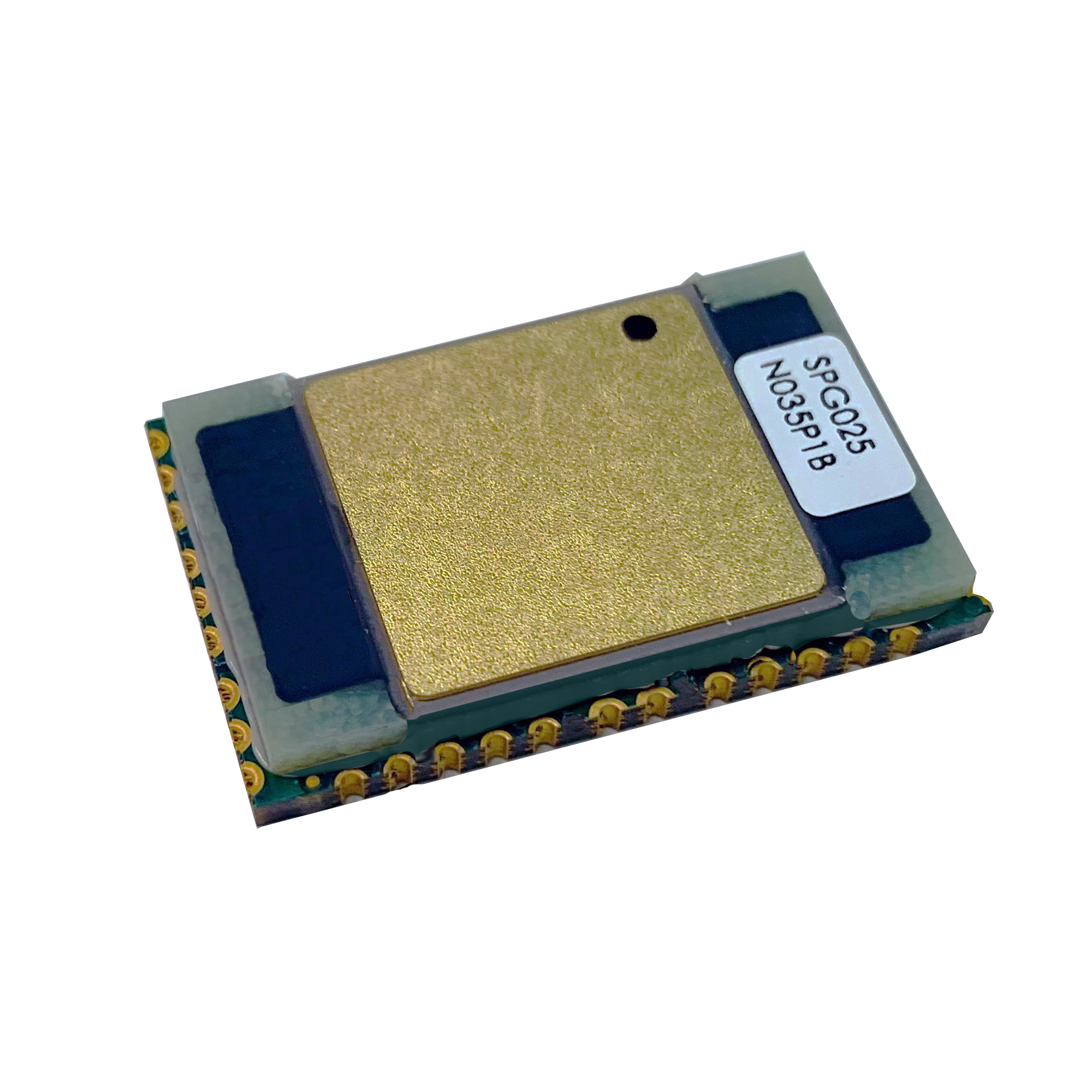

GaN Half Bridge IPM, 350V rated 20A
Sensitron has recently redesigned a high power density 350V, 20A GaN half bridge with an integrated gate drive and 500Mhz switching frequency. The topside cooling of this ultra small, lightweight high power density package (1.02" x 0.66" x 0.14") allows for optimal thermal performance. Contact us for a sample today!
LEARN MORE
|
|
|
Additional Wide Band Gap Switching Devices |
|
|
SiC Half Bridge Power Modules
Ultra light weight and low profile SiC based full or half bridge power modules use wide band gap switching devices for the ultimate in fast and efficient switching. Designed for applications where high reliability is required and space is at a premium, the SPM1 Series utilizes the latest packaging techniques for severe environments. Request a sample today!
|
|
|
|
SiC Three Phase Power Bridge Modules
Designed in a ultralightweight, low profile package, this family of rugged SiC power bridge modules are ideal for high-reliability applications requiring high power in a lightweight and small footprint package. Three-phase, full bridge and custom bridge modules are available with AlN base options for high thermal efficiency.
|
|
|
Sensitron has over 50 years of heritage as a leading manufacturer of high reliability power electronic component solutions for the Defense, Aerospace, Space, and Medical markets. Our products provide rugged, light-weight, and cost effective solutions for switching power supplies, AC-DC rectification, primary & secondary power distribution, motion control, transient voltage spike protection, and custom applications. |
|
|
